Peugeot 107 Key Shell and Remote Replacement Guide

A Peugeot 107 key shell replacement is suitable when the key’s outer case is cracked, worn or no longer holds the buttons securely, but the original electronics, blade and transponder still work. It replaces the housing rather than the key’s identity or remote system. A complete replacement key is a different solution: it may be needed when the remote electronics are damaged or missing, the key has been lost, or the existing internal parts cannot be transferred safely.

The two options can look almost identical while being incompatible. Peugeot 107 keys may differ in button layout, internal circuit board, blade design and transponder arrangement, so matching the vehicle model alone is not enough. Before buying, compare the old key with the product photos and specifications, and check which parts are included. If the original key is available, its circuit board and blade are useful reference points. If it is lost, additional vehicle and key information may be required to identify the correct replacement.

This guide explains how to tell which part has failed, what a shell replacement does and does not solve, and how to check compatibility before ordering. It also highlights practical points for arranging key cutting, programming or purchase in Lithuania without assuming that every Peugeot 107 replacement fits every vehicle.

What Is Actually Damaged on the Peugeot 107 Key?

Start with the outer casing. Cracks, broken clips, worn edges or a loose key ring point to a damaged housing rather than an electronic failure. If the key still locks and unlocks the car reliably, and the engine starts normally, a Peugeot 107 key shell may be all that needs attention. However, a cracked case can allow the battery, circuit board or transponder-related parts to move, so continued use may create a second fault.

Loose, sunken or intermittently responsive buttons need closer checking. The rubber button pad may be worn while the remote electronics remain functional, but a damaged internal switch or a displaced circuit board can produce similar symptoms. Test every button from close range and, if possible, from several metres away. One unresponsive button does not prove that the complete remote has failed.

Inspect the blade separately. A bent, badly worn or damaged blade can make the key difficult to insert or turn, even when the remote functions correctly. Do not force it in the lock or ignition: this can worsen damage to both the blade and the vehicle’s lock. A key that turns only when held at a particular angle may have blade wear, lock wear, or both, so the key alone cannot identify the cause.

Remote faults usually affect convenience functions such as locking or unlocking. Check whether the problem affects all buttons or only one, and replace or test the battery where appropriate before treating the electronics as faulty. A Peugeot 107 remote replacement may be relevant only when the original remote circuit or switches are defective; a shell will not restore a failed signal.

An engine that does not start, despite the remote buttons working, suggests a different issue involving immobiliser recognition, the transponder-related part of the key, the vehicle, or the starting system. That symptom should not be diagnosed from the casing’s appearance. Conversely, a key can look badly damaged and still start the car normally.

Before deciding what has failed, compare the key’s behaviour with a spare, if one is available, and note exactly what works: blade operation, remote buttons and engine starting. A photo can show cracks or missing buttons, but it cannot confirm hidden electronic damage or internal fit. If symptoms overlap, have the original key inspected before ordering a Peugeot 107 replacement key.

Shell, Blade, Remote and Transponder: What Gets Replaced?

A Peugeot 107 key consists of several separate parts, and a product described as a Peugeot 107 key shell usually replaces only the outer housing. The shell is the plastic case that holds the buttons, circuit board, battery and, depending on the design, the blade or transponder-related parts. It may include button covers or rubber pads, but these details vary between listings.

The original circuit board is the electronic part that controls the remote functions. It may send the lock and unlock commands when the buttons are pressed. A shell-only product normally does not include this board or its battery. In many cases, the existing board and battery are intended to be moved into the new housing, but this should not be assumed: the internal shape, clips, button positions and board support must match the specific product.

The blade is the metal part that enters the door or ignition lock. Some replacement housings are supplied with an uncut blade, while others are sold without one. An uncut blade is not automatically ready for use; it may require the correct cutting pattern, and a visually similar blade may still have a different fitting or profile. Read the listing carefully to confirm whether the blade is included and whether it is supplied cut, blank or absent.

The transponder has a different purpose from the remote electronics. It is the immobiliser-related component that the vehicle uses to recognise the key for starting. It may be a separate small part or positioned within the key assembly, depending on the product design. A new shell does not, by itself, create or replace a transponder. Before ordering, confirm whether the original transponder is expected to remain with the key and whether the replacement housing has a suitable place for it.

A complete Peugeot 107 replacement key is a different product category. It may combine a housing, blade, remote circuit board, battery and transponder, but the exact contents must be confirmed in the individual listing. A Peugeot 107 remote replacement may include the remote electronics without providing every mechanical or immobiliser component. Conversely, a replacement remote key may be supplied with several parts but still require the correct vehicle-specific preparation.

Therefore, compare the product description by component rather than by its title alone. Confirm what is included, what must be transferred from the old key, and whether the listing describes a shell, a remote assembly or a complete key. This is the basic distinction between a Peugeot key fob shell and a fully equipped replacement key.

How to Check Peugeot 107 Key Compatibility Before Ordering

Before ordering a Peugeot 107 key shell or replacement remote key, compare the original key with the complete product specification. A similar-looking casing can still have different internal supports, a different blade fitting or unsuitable button positions. The safest match uses several checks together rather than relying on the vehicle name alone.

Compare the outside shape and button layout

Start with the housing shape, overall length, width and thickness. Check the position of the key ring opening, case joins, screw holes and any grooves around the buttons. If the listing gives dimensions, compare them with the original key rather than assuming that a small difference will be harmless. A case that is slightly different internally may not close around the existing circuit board.

Button count is useful as an initial filter, but it is not proof of compatibility. Two Peugeot keys may both have two or three buttons while using different button spacing, shapes or rubber-pad supports. Compare the functions shown on the original key, the physical arrangement and the button symbols where visible. A listing that only says “fits Peugeot vehicles” does not provide enough information for a reliable order; request or locate the exact model and version details.

Check the blade and internal construction

Examine how the blade is attached. The original may use a folding blade, a fixed blade, a separate insert or a particular pivot and retaining pin. Compare the blade channel, hinge area, pin position and the shape of the blade seat in the product photographs. A shell can match the outside of the key but still be unusable if the existing blade cannot transfer into it.

Next, compare the inside of the original housing with clear listing photographs. Look for the circuit-board supports, locating posts, battery tray, retaining clips and screw positions. The battery position is especially important: a cell mounted on the board or held in a separate compartment may require different clearance and contacts. Check whether the listing includes the correct internal frame, button pad or battery holder, and do not assume that every shell contains the same parts.

Use photographs of the original key from several angles when comparing products. The front view may hide a different back cover, hinge structure or internal layout. If the listing provides only a generic stock image, treat compatibility as unconfirmed until the seller supplies photographs or measurements that correspond to your key.

Finally, read the exact compatibility notes for year, market, remote version and vehicle configuration. Model names alone may cover more than one key design. Record the dimensions, blade fitting, button configuration and battery position stated in the relevant listing, then compare each item with the original. If any point remains unclear, manual verification is preferable to ordering a Peugeot 107 replacement key or shell on appearance alone. The same rule applies when buying in Lithuania or from an overseas seller: confirm the part-specific details before purchase, rather than relying on a broad vehicle-brand description.

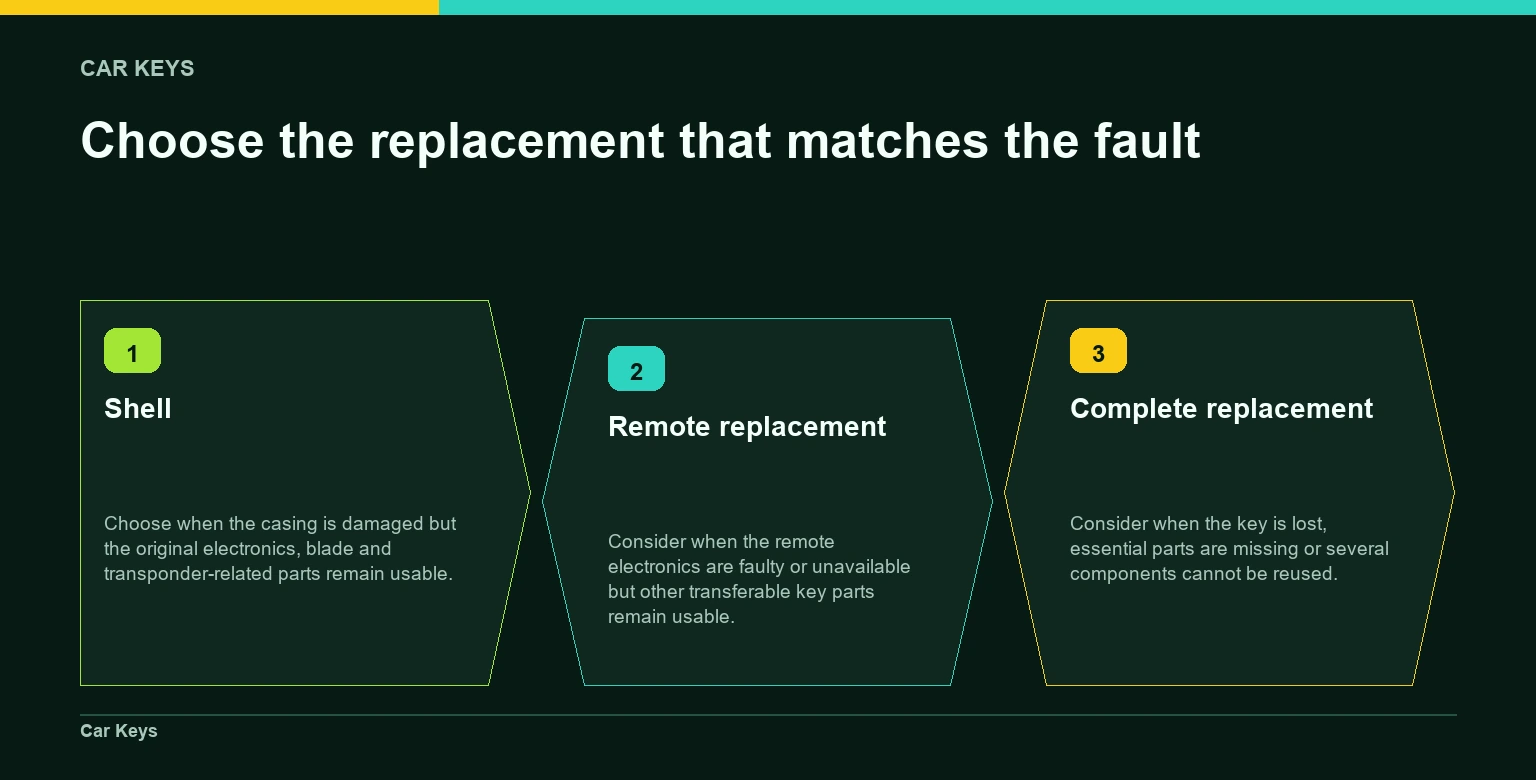

Should You Buy a Shell, Remote Key or Complete Replacement?

Choose the least complete replacement that solves the actual fault—but only after confirming which original parts remain usable. A Peugeot 107 key shell is usually the right option when the existing remote electronics, blade and transponder-related parts still work and can be transferred into the new housing. This can suit a key with a cracked case, broken clips, worn button covers or a loose interior, provided the original board fits the replacement housing.

A shell is not enough if the circuit board is damaged, the remote has stopped responding for an electronic reason, or important internal parts are missing. Do not assume that a working engine proves the remote electronics are reusable, or that a working remote proves the transponder-related parts are present and transferable. A shell listing may include only the casing and button components; confirm the exact contents before ordering.

A Peugeot 107 remote replacement is more appropriate when the original remote board is faulty or unavailable but the blade and any separately transferable immobiliser-related component can still be reused. This category may include a new housing with remote electronics, but product descriptions differ. Check whether the listing supplies a circuit board, battery, buttons, blade, transponder, or only selected parts. A “remote key” label alone does not establish that every part needed for the vehicle is included.

A complete replacement key may be necessary when the original key has been lost, the blade is damaged beyond reuse, the electronics are missing, or there is no reliable original assembly to transfer. It may also be the more practical choice when several components are worn at once. However, a complete key is not automatically ready for use: confirm whether its remote functions and immobiliser recognition require programming for the specific vehicle, and whether that programming is included or must be arranged separately.

The blade is a separate compatibility risk. A replacement housing may accept the original blade, require a supplied blade, or use a fitting that is not interchangeable. Similarly, a Peugeot key fob shell that looks correct externally may not support the original circuit board or internal parts. Before buying, use the product’s stated contents and compatibility information—not the vehicle name or button count alone—as the final decision basis.

What to Confirm Before Fitting or Programming a Replacement Key

Before fitting a replacement, confirm which usable parts must move from the old key. A shell change may require transferring the circuit board, battery, rubber button pad and any small internal piece that keeps the electronics in position. Compare the replacement’s internal supports with the original before closing the case. If a board sits loosely or a button does not press the switch correctly, the remote may work intermittently even though the housing looks suitable.

Check the blade separately. A replacement shell may be supplied with an empty blade slot, an uncut blade or a blade that requires a different fitting method. If the original blade is reusable, confirm that it can be transferred securely. If a new blade is included, ask whether it must be cut to match the vehicle’s existing key. Cutting requirements are vehicle- and product-specific; do not assume that a blade supplied with a Peugeot 107 replacement key is ready to use.

Also establish whether the next step is remote synchronisation, immobiliser programming, or both. Synchronisation concerns the remote buttons’ communication with the vehicle’s locking system. Immobiliser programming concerns whether the car recognises the key when starting. A remote can lock or unlock the vehicle while the engine-start function still needs separate programming, so testing one function does not prove that the other is complete.

Read the product description carefully to confirm whether the key is supplied ready to use or needs component transfer, blade cutting, synchronisation or programming. Listings may use “replacement remote key” broadly, while the actual contents and required work differ.

Keep the original key until every relevant function has been tested: locking, unlocking, boot operation if applicable, starting, and reliable button response. If the original is lost, the electronics cannot be compared directly, making vehicle-specific confirmation more important.

Seek confirmation from the seller or an appropriately equipped automotive key professional when the listing does not state the exact key version, the vehicle’s required programming method, or whether cutting and programming are available. In Lithuania, check these points before sending a key for service or ordering one from abroad; availability and capability should not be assumed.

The practical takeaway is to identify what has actually failed before ordering a Peugeot 107 replacement. If the blade and electronics still work and only the casing is worn or cracked, a compatible shell may be enough. If the key is lost, the remote does not respond, or the electronics are damaged, a complete replacement may be required—but compatibility and programming should be confirmed first. Match the new part to the exact key and vehicle details, and use a local service in Lithuania when cutting, pairing, or diagnosis is needed.
